Swagger

Swagger

• 간단한 설정으로 프로젝트의 API 목록을 웹에서 확인 및 테스트 할 수 있게 해주는 Library
• Swagger를 사용하면 Controller에 정의되어 있는 모든 URL을 바로 확인할 수 있음
• API 추가 또는 변경 시 문서에 적용해야하는 불편함 해결

💡 FrontEnd 개발자는 화면과 로직에 집중하고,
     BackEnd 개발자가 만든 문서 API를 보며 데이터 처리!



Swagger 적용

1. dependency 추가, 설정

 pom.xml

<!-- swagger -->

<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-boot-starter</artifactId>
    <version>3.0.0</version>
</dependency>

<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger2</artifactId>
    <version>3.0.0</version>
</dependency>

<dependency>
    <groupId>io.springfox</groupId>
    <artifactId>springfox-swagger-ui</artifactId>
    <version>3.0.0</version>
</dependency>



root-context.xml

<resources mapping="/swagger-ui/**" location="classpath:/META-INF/resources/webjars/springfox-swagger-ui/" />
<context:component-scan base-package="com.danbi.mvc.config" />



2. SwaggerConfig.java

package com.danbi.mvc.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class SwaggerConfig {
	@Bean
	public Docket api(){
    	    final ApiInfo apiInfo = new ApiInfoBuilder()
                .title("직원 관리 API")
                .description("<h3>직원관리시 사용하는 RestApi에 대한 문서를 제공합니다.</h3>")
                .contact(new Contact("EMPLOYEE", "http://emp.com", "emp@email.com"))
                .license("MIT License")
                .version("9.0")
                .build();

    	return new Docket(DocumentationType.SWAGGER_2)
            .apiInfo(apiInfo)
            .select()
            .apis(RequestHandlerSelectors.basePackage("com.danbi.mvc.controller"))
            .paths(PathSelectors.ant("/*/empapi/**"))
            .build();

	}
}

@EnableSwagger2 : Swagger2 사용




3. Swagger가 적용될 Model (DTO)

package com.danbi.mvc.dto;

import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.*;

@Getter
@Setter
@NoArgsConstructor
@AllArgsConstructor
@ToString
@ApiModel(value="직원 정보", description = "직원 정보를 보여줍니다.")
public class Emp {
	@ApiModelProperty("직원 번호")
	private int num;

	@ApiModelProperty("직원 이름")
	private String name;

	@ApiModelProperty("직원 급여")
	private int salary;
}

@ApiModel : 모델에 설명 추가
@ApiModelProperty : 모델의 요소에 설명 추가




4. Swagger가 적용될 Controller

package com.danbi.mvc.controller;

import java.sql.SQLException;
import java.util.List;
import java.util.Map;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.DeleteMapping;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.PutMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import com.danbi.mvc.dto.Emp;
import com.danbi.mvc.model.service.EmpService;

import io.swagger.annotations.ApiOperation;

@RestController
@CrossOrigin("*")
@RequestMapping("/empapi")
public class EmpRestController {
	@Autowired
	private EmpService svc;

	@PostMapping("/emp")
	@ApiOperation(value="Emp 객체 목록을 등록한다.",response=Emp.class)
	public ResponseEntity<?> insert(@RequestBody Emp emp) throws SQLException {
		int r = svc.insert(emp);
		if (r == 1) return new ResponseEntity<Integer>(r, HttpStatus.CREATED); //201
		return new ResponseEntity<Void> (HttpStatus.NO_CONTENT); // 204
	}

	@DeleteMapping("/emp/{num}")
	@ApiOperation(value="{num}에 해당하는 Emp 객체를 삭제한다.",response=Emp.class)
	public ResponseEntity<?> delete(@PathVariable int num) throws SQLException {
		int r = svc.delete(num);
		if (r == 1) return new ResponseEntity<Integer>(r, HttpStatus.OK); //200
		return new ResponseEntity<Void> (HttpStatus.NO_CONTENT); // 204
	}

	@PutMapping("/emp")
	@ApiOperation(value="Emp 객체를 변경한다.",response=Emp.class)
	public ResponseEntity<?> update(@RequestBody Map<String, Integer> map) throws SQLException {
		int r = svc.update(map);
		if (r == 1) return new ResponseEntity<Integer>(r, HttpStatus.CREATED); //201
		return new ResponseEntity<Void> (HttpStatus.NO_CONTENT); // 204
	}

	@GetMapping("/emp")
	@ApiOperation(value="Emp 객체 목록을 반환한다.",response=Emp.class)
	public ResponseEntity<?> search() throws SQLException {
		List<Emp> emps = svc.search();
		if (emps != null && emps.size()>0) 	return new ResponseEntity<List<Emp>>(emps, HttpStatus.OK);
		return new ResponseEntity<Void> (HttpStatus.NO_CONTENT);
	}

	@GetMapping("/emp/{num}")
	@ApiOperation(value="{num}에 해당하는 Emp 정보를 반환한다.",response=Emp.class)
	public ResponseEntity<?> select(@PathVariable int num) throws SQLException{
		Emp emp = svc.select(num);
		if(emp != null) return new ResponseEntity<Emp> (emp, HttpStatus.OK);
		return new ResponseEntity<Void> (HttpStatus.NO_CONTENT);
	}
}

@ApiOperation : 요청 URL에 매핑된 API 에 대한 설명

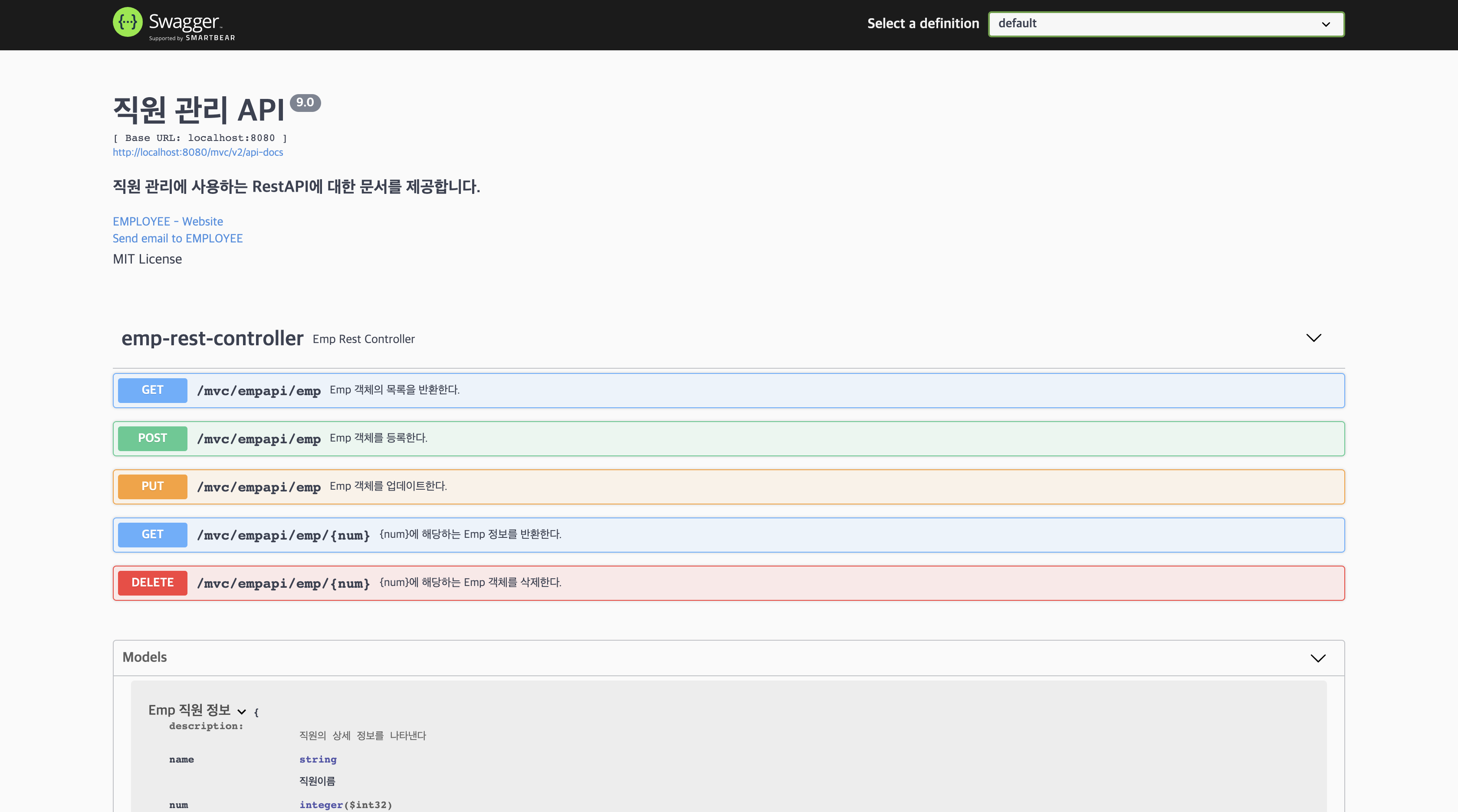

동작 영상

다음과 같이 API 확인 및 테스트가 가능하다!!
